- 640 x 480 uncooled microbolometer detector
- 12 µm pixel pitch
- NETD of 35 mK or 40 mK
- SWaP-C optimized
- Available with or without shutter
Features

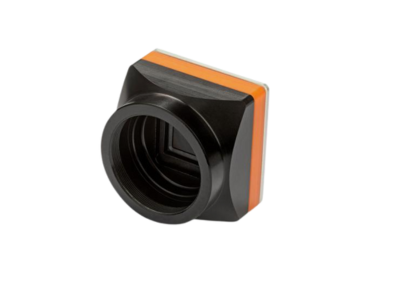

The Dione XP (Extreme Performance) 640 CAM Series is a high-performance uncooled LWIR thermal imaging solution featuring a 640 x 480 resolution microbolometer detector, with a 12 µm pixel pitch and NETD of down to <35 mK.
This LWIR core offers exceptional dynamic range and image contrast thanks to it's advanced XLIE (Xenics Local Image Enhancement) algorithms. Housed for M24 or M34 lenses, local AGC and advanced image processing capabilities improve scene dynamics and clarity. With fast start-up, <100 µs latency, automatic calibration pack switching, and GenICam compliance, it allows for seamless integration and reliable performance in harsh environments.
The Dione XP 640 CAM is available with or without a mechanical shutter. Shutter-less configurations are provided with an advanced shutterless image correction algorithm to ensure optimal image quality.
A variety of lens options are available for customization specific to your application requirements. These systems are ideal solutions for integration in security and defence systems, either vehicle-mounted or on aerial platforms.
| Camera Specifications | Dione XP 640 CAM | Dione XP S 640 CAM |
|---|---|---|
| Pixel pitch | 12 µm | 12 µm |
| Image format | 640 x 480 pixels | 640 x 480 pixels |
| Spectral range | 8 - 14 µm | 8 - 14 µm |
| Max frame rate (full frame) | 60 Hz | 60 Hz |
| Regulatory compliance | RoHS | RoHS |
| Integration type | Rolling shutter | Rolling shutter |
| Power consumption | 0.750 W (16bit DV); < 1.1 W (MIPI CSI-2); <1.32 W (UVC); < 1.3 W (USB) | 0.800 W (16bitDV); < 1.3 W (USB); <1.0 W (MIPI CSI-2) |
| Optical interface (optional) | M24 or M34 x0.5 | M24 or M34 x0.5 |
| Detector NETD | < 40 mK or <35 mK | < 40 mK or <35 mK |
| Digital output format | 16 bit DV, MIPI CSI-2, USB, UVC | 16 bit DV, MIPI CSI-2, USB |
| Mechanical Shutter | No | Yes |
